TransBorder Freight Annual Report 2023

Tuesday, May 21, 2024

BTS 25-24



Transborder data is available for 2023! The Bureau of Transportation Statistics (BTS) compiled the dollar value and tonnage of commodities that moved across the United States’ land borders with Canada and Mexico. Manufacturing and logistics sectors across North America are highly linked and interdependent. America’s land borders with Canada and Mexico are economically vital conduits for North American supply chains, with about $3 billion in daily cross-border trade. Besides oil and energy products, automobiles, and electronics, Canada and Mexico are also America’s largest trade partners in agricultural goods.

U.S. land borders with Canada and Mexico consistently facilitate over $1 trillion in cross-border trade annually (Table 1a). To put things in perspective, in 2023 the value of total U.S.-international trade was $5.1 trillion, of which U.S. trade with Canada and Mexico comprised 30.8 percent (Table 2). In 2023, U.S. freight flows with Canada and Mexico equaled $1.57 trillion dollars. The total weight of that trade was 2,484.7 million tons (Table 4). While the weight of freight increased 8.8% from 2022, the dollar value of North American freight in 2023 remained unchanged.

Surface modes of transportation (truck + rail) lead North American commerce, together accounting for 80.3% of all freight flows by dollar value in 2023. Trucking continued to be the dominant form of freight transportation in North America, accounting for 60.1% of total flows in Canada and 72.2% in Mexico (Table 3). Rail was second place with 15.7% with Canada and 12.3% with Mexico (Table 1b).



Table 1a.  Value of Monthly U.S.-North American Freight Flows
(USD Millions)

Month

2021

2022

2023

 Percent Change      2021-2022

 Percent Change       2022-2023

January

94,284

113,707

125,783

20.6

10.6

February

95,860

112,459

119,919

17.3

6.6

March

114,587

141,850

141,472

23.8

-0.3

April

107,369

135,255

126,573

26.0

-6.4

May

108,646

139,439

136,241

28.3

-2.3

June

115,955

141,238

134,795

21.8

-4.6

July

111,270

132,559

127,052

19.1

-4.2

August

113,075

140,339

138,015

24.1

-1.7

September

109,220

133,934

131,816

22.6

-1.6

October

117,417

133,756

138,501

13.9

3.5

November

120,094

125,826

131,020

4.8

4.1

December

117,548

121,668

121,586

3.5

-0.1

Annual

1,325,325

1,574,053

1,574,797

18.8

0.0

Note: Totals includes mail and other.

Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.



Table 1b.  Modal Percent Value of U.S.  Merchandise Trade with Canada and Mexico: 2023
USD Actual
Table 1b.  Modal Percent Value of U.S.  Merchandise Trade with Canada and Mexico: 2023

Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.



Table 2: Value of U.S. Freight with Canada and Mexico as a Percentage of Total U.S. Trade: 2019 - 2023
USD Actual
Table 2: Value of U.S. Freight with Canada and Mexico as a Percentage of Total U.S. Trade: 2019 - 2023

Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.




Figure 1.  U.S. Freight with Canada and Mexico as a Percentage of Total U.S. Trade: 2019 – 2023 (USD)

  U.S. Freight with Canada and Mexico as a Percentage of Total U.S. Trade: 2019 – 2023 (USD)



Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.



U.S.-North American Freight Points

  • Total transborder freight: $ 1.57 trillion of transborder freight moved by all modes of transportation, 0.0% change compared to 2022
  • Freight between the U.S. and Canada: $773.9 billion, down 2.4% from 2022
  • Freight between the U.S. and Mexico: $798.8 billion, up 2.5% from 2022
  • Trucks moved $996.4 billion of freight, up 5.1% compared to 2022
  • Railways moved $209.2 billion of freight, down 0.5% compared to 2022
  • Vessels moved $126.3 billion of freight, down 9.0% compared to 2022
  • Pipelines moved $112.6 billion of freight, down 24.5% compared to 2022
  • Air moved $57.1 billion of freight, down 1.2% compared to 2022
  • Vessel and pipeline freight decreased due to the lower dollar value of mineral fuels

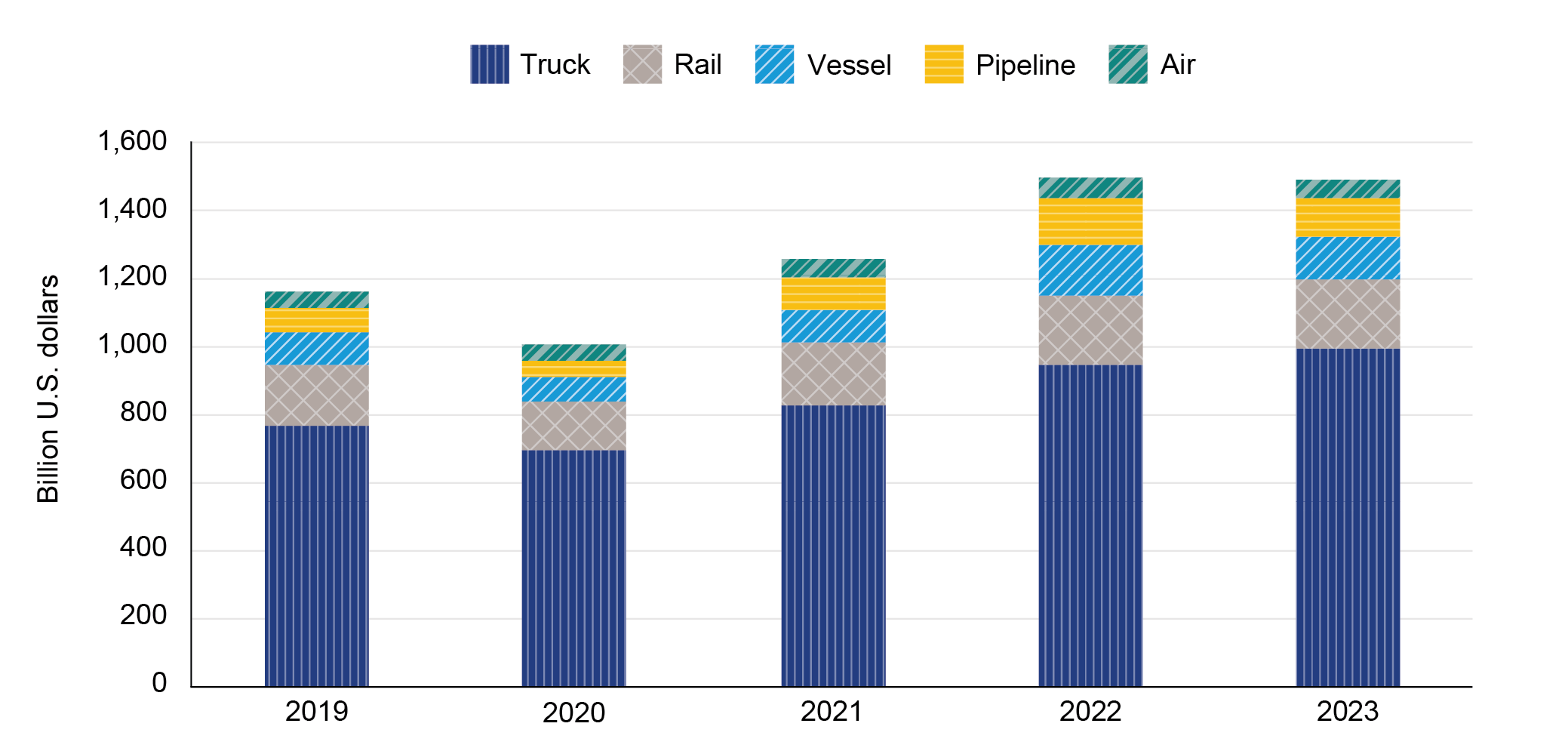

Figure 2.  Value of U.S. Trade with Canada and Mexico by Mode: 2019 – 2023 (USD Actual)

Bar chart showing Value of U.S. Trade with Canada and Mexico by Mode: 2019 – 2023 (USD Actual)

Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.



Table 3a: U.S.-Canada Freight by Truck: 2023

 Table 3a: U.S.-Canada Freight by Truck: 2023



Table 3b: U.S.-Mexico Freight by Truck: 2023

Table 3b: U.S.-Mexico Freight by Truck: 2023





U.S.-Canada Data Points

  • Detroit, Buffalo, and Port Huron are the top truck ports for U.S. freight flows with Canada.
  • Detroit, Port Huron, and International Falls are the top rail connection ports for U.S. freight flows with Canada.
  • Chicago, Port Huron, and Minneapolis are the top pipeline connection regions for U.S. energy freight flows with Canada.
  • Port of Boston, Arthur, and Portland are the top water port connections for U.S. energy flows with Canada.

U.S.-Mexico Data Points

  • Laredo, Ysleta, and Otay Mesa are the top truck ports with Mexico.
  • Laredo, Eagle Pass, and El Paso are the top rail connection ports with Mexico.
  • El Paso, Hidalgo, and Laredo are the top pipeline connection regions with Mexico.
  • Port of Houston, Arthur, and Texas City are the top water port connections for U.S. energy flows on the Southern border.
  • Energy flows by vessel with Mexico are more expansive than pipeline flows with Canada.


Table 4. Weight of U.S.-International Freight by Mode:  2019 - 2023
Tons (Millions)

Table 4. Weight of U.S.-International Freight by Mode:  2019 - 2023

Sources: Bureau of Transportation Statistics, Federal Highway Administration, Freight Analysis Framework Version 5.5.1 https://faf.ornl.gov

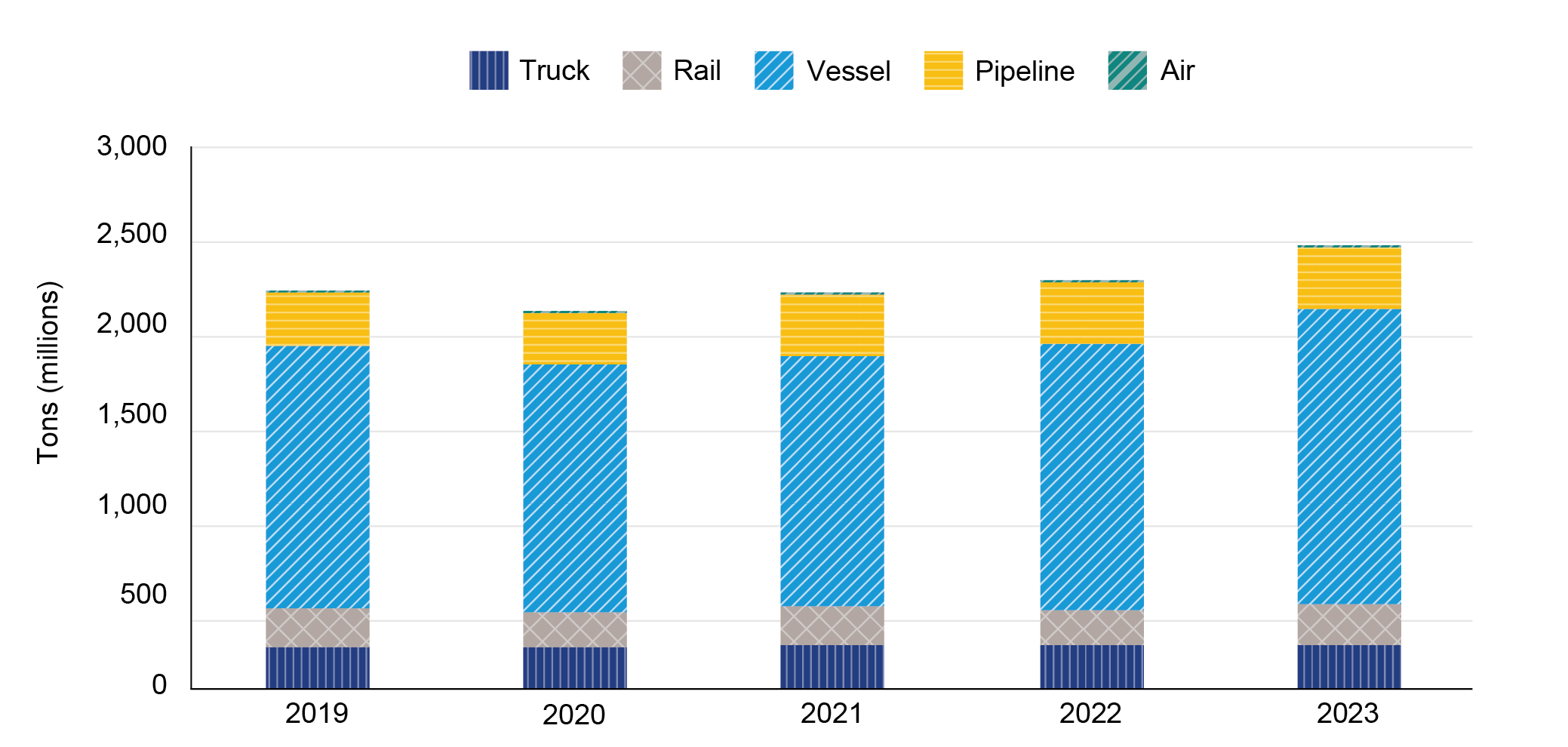

Figure 3. Weight of U.S.-International Freight by Mode:  2019 – 2023 (Millions of Tons)

Bar chart showing Weight of U.S.-International Freight by Mode:  2019 – 2023 (Millions of Tons)

Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.



Since earlier than 2006, U.S. freight flows with Canada by value had commonly exceeded that with Mexico. However, starting in 2015, there have been several instances where U.S. freight with Mexico by value has surpassed that of Canada (Figure 3). This trend first appeared in October 2015 and has continued and extended through the COVID-19 pandemic. Interestingly, during this same period, the weight of freight flows with Canada has continued to exceed that of Mexico. U.S. freight flows with Canada by weight continue to be greater than Mexico due to petroleum and mineral fuels transported by pipeline (Figure 4a). In 2023, the dollar value of mineral fuel flows with Canada and Mexico decreased between 16 and 20 percent from 2022.

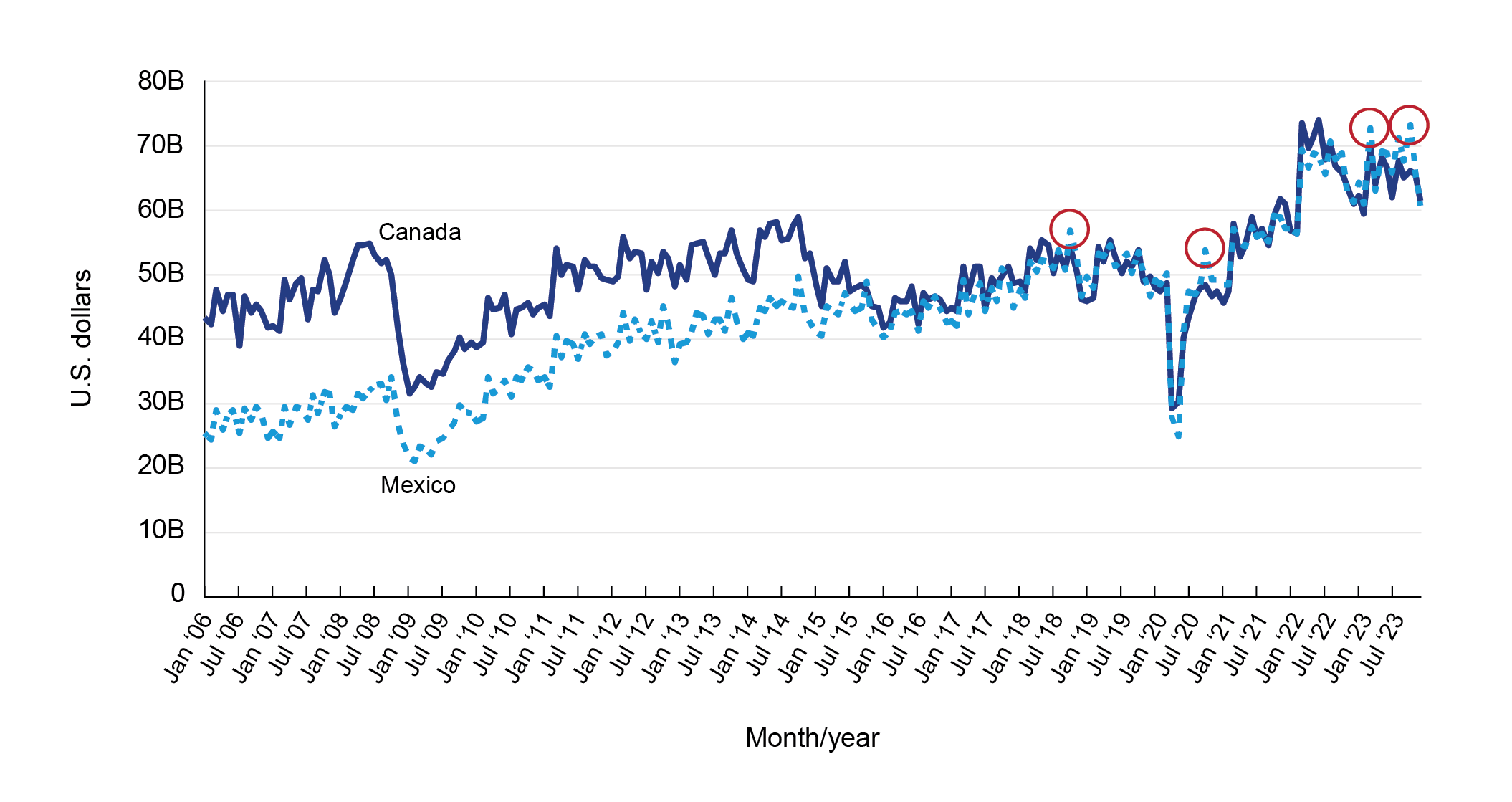

Figure 4. Value of U.S. Freight with Canada and Mexico (USD Actual)

Line chart showing Value of U.S. Freight with Canada and Mexico (USD Actual)

Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.

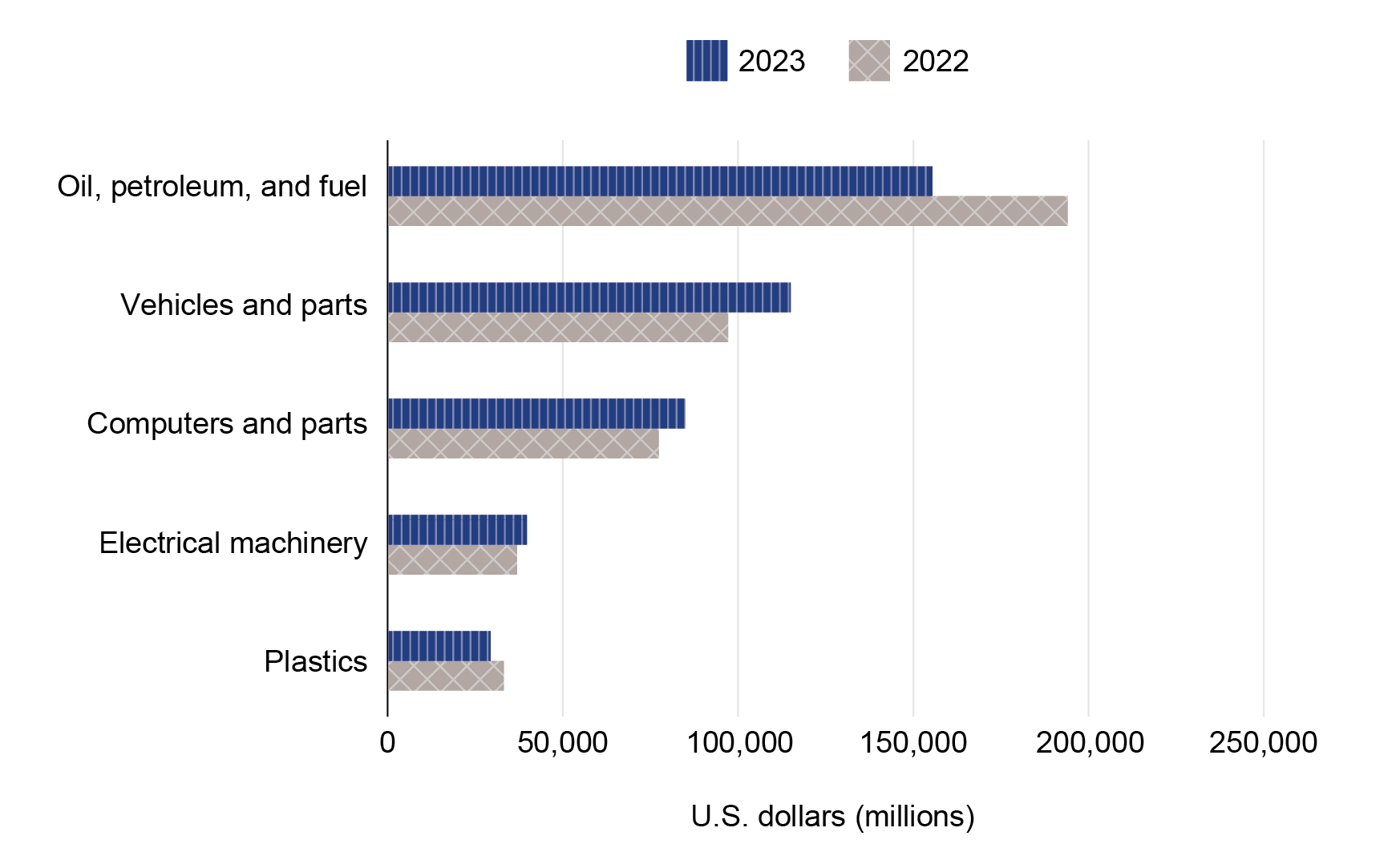

Figure 5a: Top U.S.-Canada Commodities by Value (Millions USD): 2022 - 2023

Bar chart showing Figure 5a: Top U.S.-Canada Commodities by Value (Millions USD): 2022 - 2023



Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.

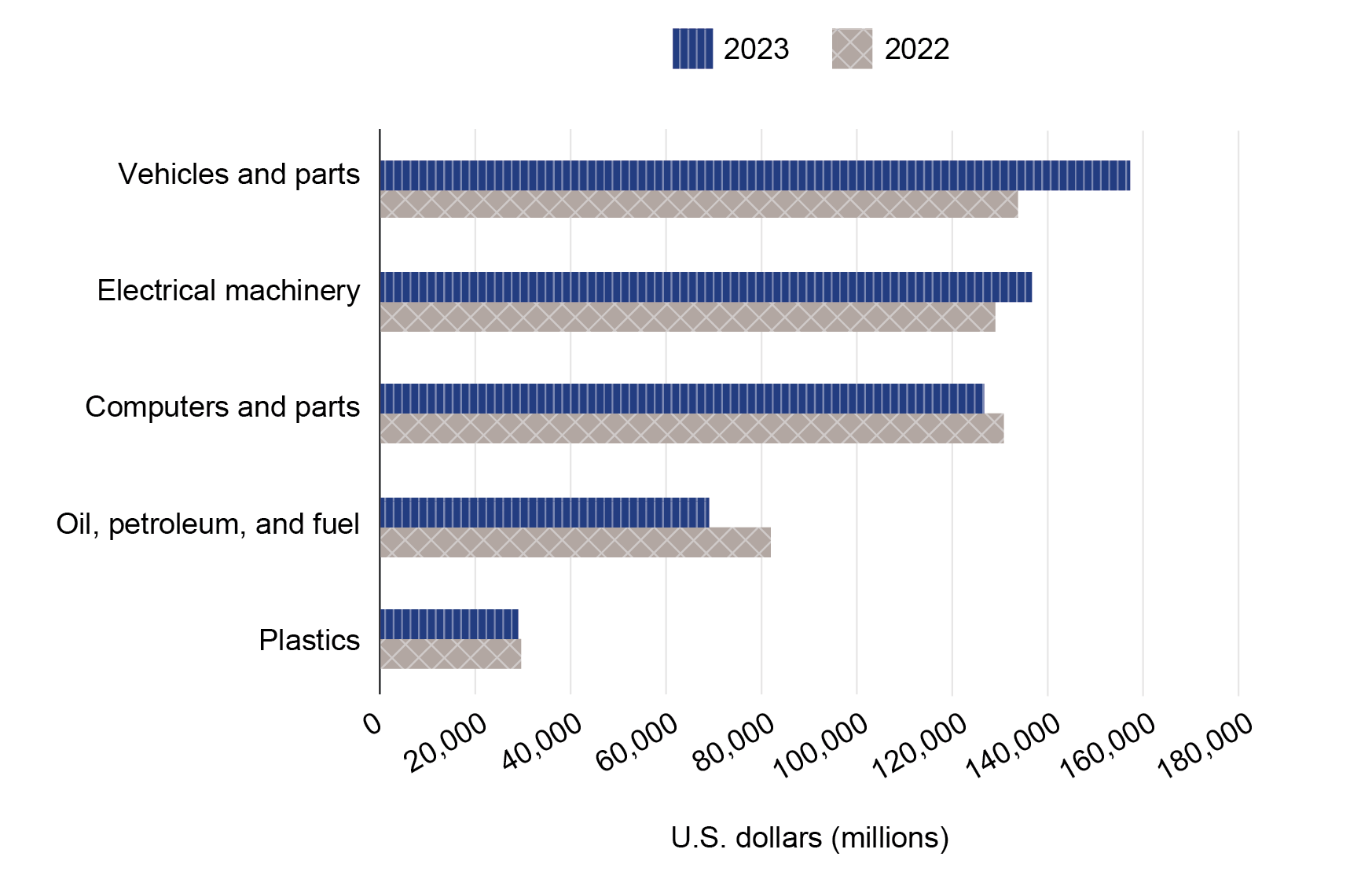

Figure 5b: Top U.S.-Mexico Commodities by Value (Millions USD): 2022 - 2023

bar chart showing Figure 5b: Top U.S.-Mexico Commodities by Value (Millions USD): 2022 - 2023



Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.

Since the pandemic in 2020, truck freight has grown faster than rail freight for U.S. trade with Canada and Mexico combined (Figure 5). In 2022, trucks shipped $996.4 billion worth of goods from and to Canada and Mexico, while rail accounted for $209.2 billion. From 2022 to 2023, the value of truck freight increased by 5.1 percent while rail decreased by 0.47 percent.

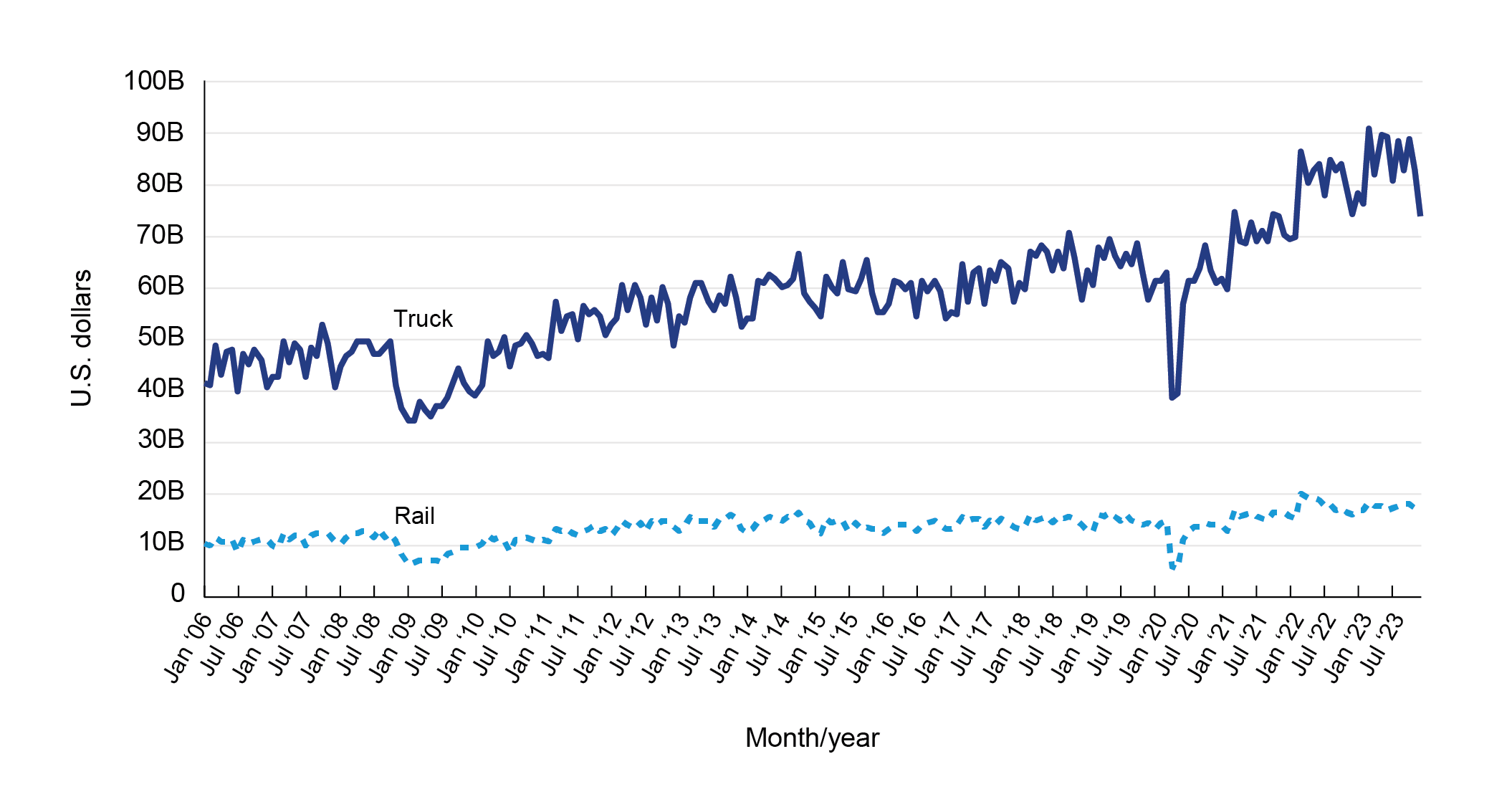

Figure 6.  Value of U.S. Freight by Truck and Rail with Canada and Mexico (USD Actual)

Line chart showing Value of U.S. Freight by Truck and Rail with Canada and Mexico (USD Actual)

Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.



Figure 6 expands the truck data to show freight moved by trucks coming to and from Mexico and Canada. U.S. freight transportation by truck with Mexico increased at a faster pace than Canada since 2020. From the pandemic lows in April 2020 to December 2023, freight by truck with Canada has increased from $17.8 billion to $32.1 billion while freight by truck with Mexico has grown from $20.8 billion to $41.1 billion.

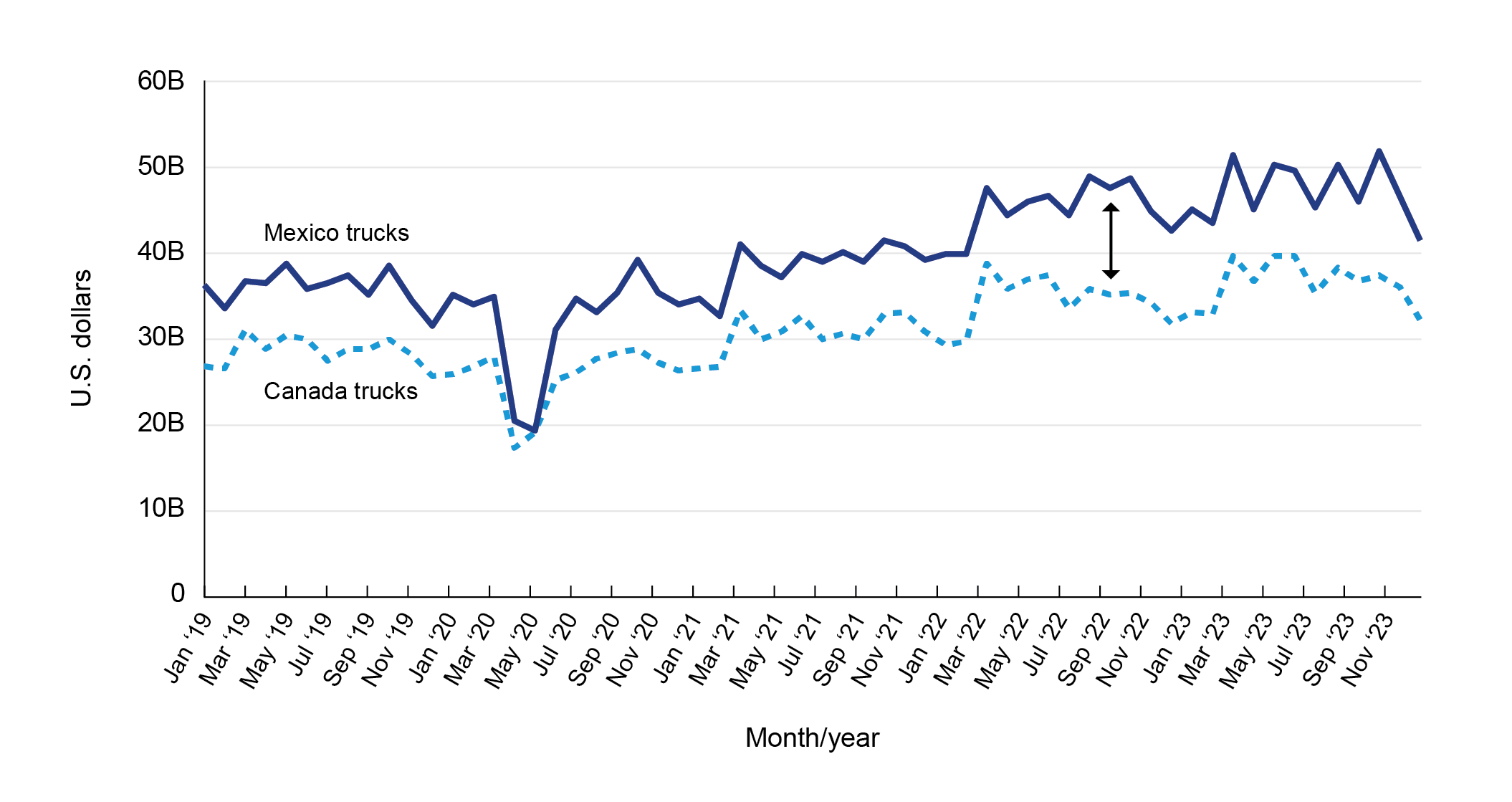

Figure 7.  Value of U.S. Freight by Truck with Canada and Mexico (USD Actual)

Line chart showing  Value of U.S. Freight by Truck with Canada and Mexico (USD Actual)

Source: Bureau of Transportation Statistics, Transborder Freight Data, available at https://data.bts.gov/stories/s/myhq-rm6q, adapted from U.S. Census Bureau, International Trade in Goods and Services.
